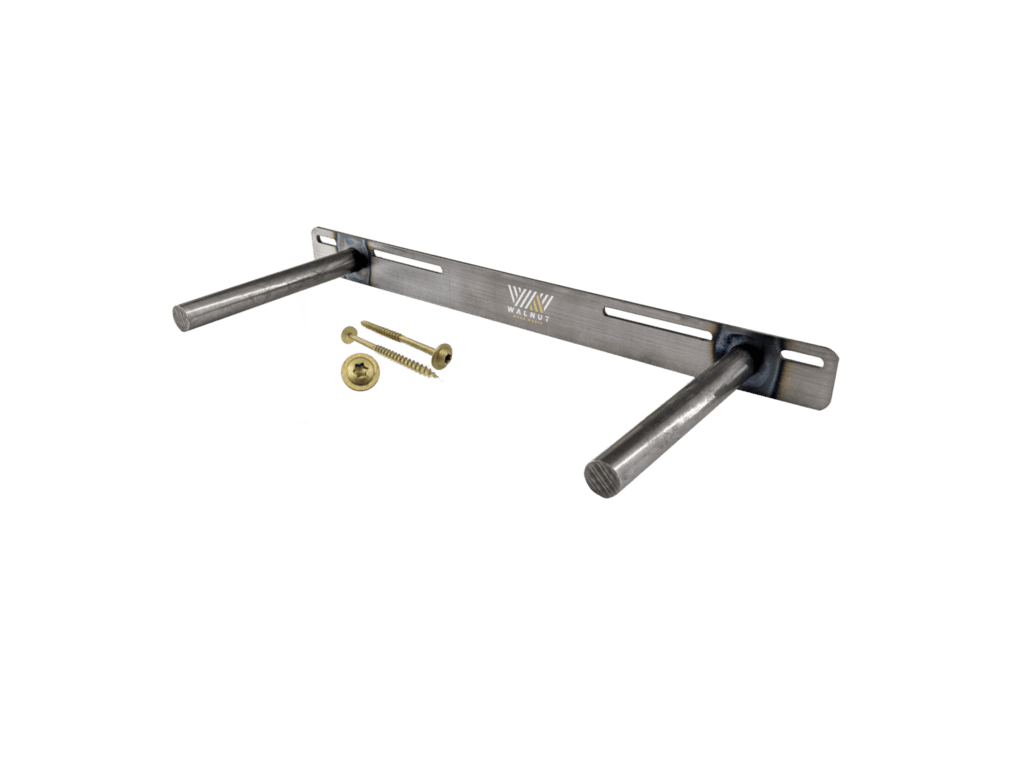

18″ Heavy Duty Floating Shelf Bracket
$38.95
Bracket Details
The Basics

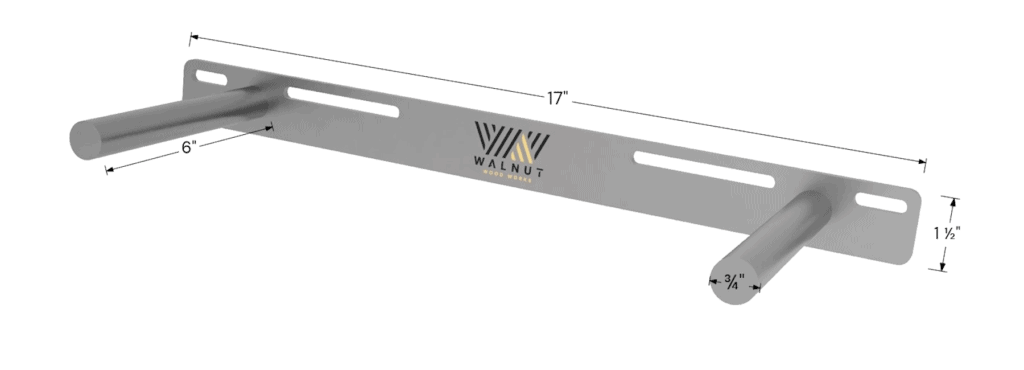

LENGTH: 17″
HEIGHT: 1.5″
THICKNESS: 3/16″
RODS: 6″
ROD DIAMETER: 3/4″
The Nitty Gritty
WEIGHT CAPACITY: 75lbs per stud

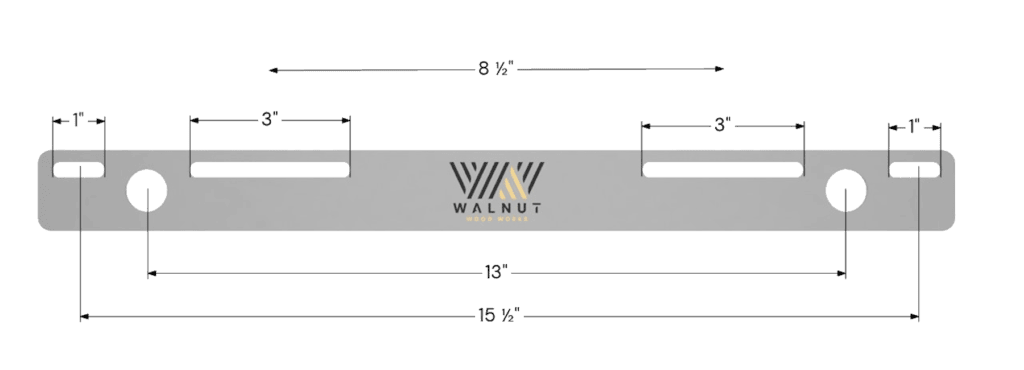

ROD SPACING: 13″ center to center
SLOT DIMS: 3″ large slot & 1″ small slot
ATTACHMENT: Structural Lag Screws provided
Recommendations
Drilling
Holes
Using our Drill Guide Kit is the easiest way to get your holes drilled in your shelves.
Shelf
Depth
These brackets are to be used for shelves up to 12″ deep. If your shelf is over 12″ deep, we suggest using our Super Duty Brackets.
Shelf
Thickness
These brackets can be used on shelves 1.75+” thick
Shelf
Length
We recommend using this bracket for shelves 18″ – 26″ long.
Weight
Capacity
These brackets are capable of holding a max weight of 150lbs if installed into two studs.
Empty
Holes
We recommend using heavy duty drywall anchors in the slots that don’t hit your studs.
Simplify Your Install
You may also like…
Easy Installation
Walnut Wood Works floating shelf brackets will always be square. You can count on the precision uniformity of our products to ensure that all of you commercial or home improvement projects run smoothly. Just drill the holes, recess the shelf, and slide them on.
To take all of the hassle out of mounting floating shelves, purchase our Floating Shelf Bracket DIY Drill Guide Kit.
100% Invisible Design
All of our Floating Shelf Brackets are designed to be installed completely out of sight for that true floating look. Add an elegant look to any room in the house.
Our floating shelf brackets are made with a 3/16″ steel back plate and 3/4″ solid steel support rods. The brackets have screw slots for easy installation.
Ideal for:
Kitchen Shelving
Floating Mantles
Bathroom & Laundry Storage
Floating Bookshelves
Heavy Duty Garage Shelving
American Made with American Steel
We take great pride in the fact that all of our products are manufactured from start to finish in the USA.
We start with raw cold rolled American steel that we cut, drill, grind, weld, package, and ship from our facility in in Bell Buckle, Tennessee.
That means we’re always here for you. All of your money stays in the US and you’re supporting local jobs with every purchase.
